As consumer electronics increasingly trend toward outdoor, portable, and rugged applications, the demands for waterproof, dustproof, drop-resistant, and heat dissipation performance of their housings are higher than ever. A custom IP68 waterproof aluminum enclosure has become the standard protective solution for high-end electronic devices, thanks to its superior protection, lightweight nature, and premium texture. By tailoring the design to perfectly match product structures and application scenarios, a custom waterproof enclosure for consumer electronics offers unmatched adaptability. This article explores a real-world B2B custom manufacturing case study, detailing technical parameters, machining processes, material advantages, and market value to provide a professional reference for your B2B procurement needs.
Core Overview of the Custom IP68 Waterproof Enclosure Project

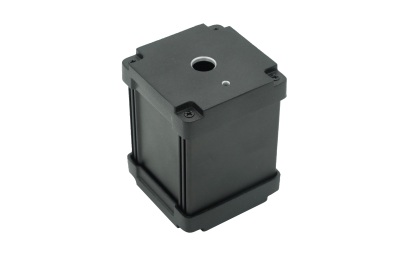

This custom waterproof enclosure for consumer electronics project was specifically engineered for high-end devices, utilizing the Yonggu M01 base model. The overall dimensions are precisely controlled at 60*60*70mm. The main body utilizes extruded 6063-T5 aluminum and ADC12 die-cast aluminum alloys, paired with SUS304 stainless steel support brackets and fastening screws. Surface treatments include sandblasted anodized ink-black and black powder coating. The core achievement is passing the IP68 top-tier waterproof rating, ensuring complete dust ingress protection and long-term water immersion without leakage, perfectly suited for damp, outdoor, and marine environments.
Technical Parameters for Consumer Electronics Waterproof Enclosures
| Component Category | Component Name | Custom Dimensions (mm) | Material Specification | Surface Treatment | Standard Machining Process |
|---|---|---|---|---|---|
| Main Body | Extruded Housing | 60*60*70 | 6063-T5 Aluminum | Sandblasted Anodized Ink-Black | Sawing → Tapping/Threading → Sandblasting → Anodizing → Packaging |
| Waterproof Cover | AM01 End Cap | 65.65*65.65*15.5 | ADC12 Die-Cast Aluminum | Black Powder Coating | Die-casting → CNC Machining → Powder Coating |
| Support Brackets | Mounting Feet | 63*28.9*61.5 | SUS304 Stainless Steel | Mill Finish / Brushed | Laser Cutting → Hand Polishing → Manual Brushing → Bending → Packaging |
| Fasteners | Spherical Cylinder Head Screws | M3*12 | SUS304 Stainless Steel | Standard Finish |
/ |

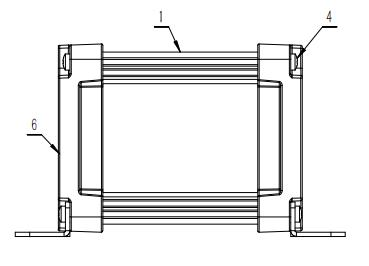

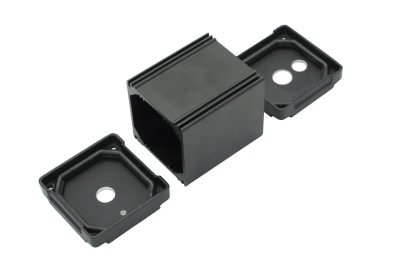

IP68 Waterproof Enclosure Component Details Display
 |
 |
 |
 |
Machining Process for Custom IP68 Waterproof Aluminum Enclosures
This custom waterproof enclosure for consumer electronics adopts a refined, multi-component manufacturing workflow. By optimizing the CNC routing and machining paths for waterproofing requirements, we ensure the IP68 rating is consistently met during mass production.

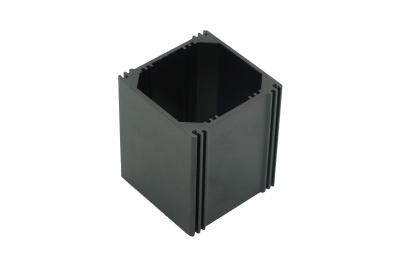

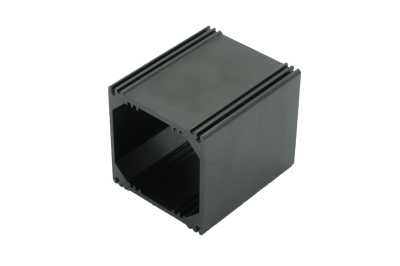

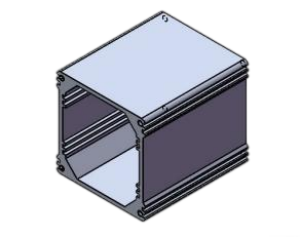

Extruded Housing Machining: Starting with 6063-T5 aluminum profiles, the material is precisely cut to 60*60*70mm. High-precision tapping ensures tight screw thread tolerances for optimal sealing. The sandblasting process enhances surface adhesion, while anodizing creates a dense protective layer, significantly improving corrosion resistance and waterproofing.

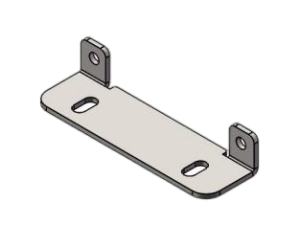

Bracket Fabrication: The SUS304 stainless steel brackets are formed via laser cutting. Hand polishing and wire drawing improve both texture and operational smoothness. Precision bending guarantees a flush fit with the housing, ensuring zero burrs or deformation, providing stable support and slip resistance.

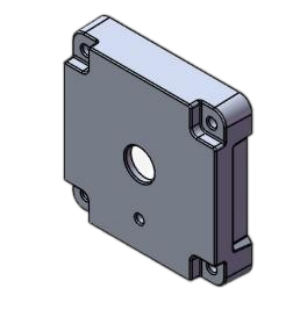

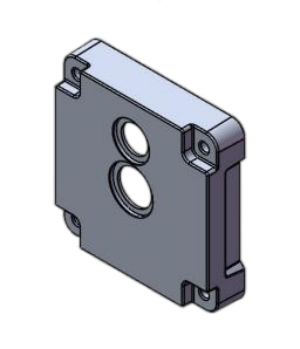

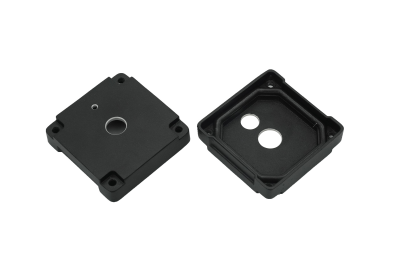

End Cap Molding: The end caps are manufactured using ADC12 die-casting, achieving precise dimensions of 65.65*65.65*15.5mm. A black powder-coated finish is applied post-molding. When mated with the main housing and sealing gaskets, it forms a fully enclosed waterproof structure, eliminating any risk of capillary seepage.
Material Selection and Waterproof Performance Advantages
This project utilizes a multi-material combination strategy, expertly balancing the waterproofing, lightweighting, structural integrity, and thermal management required by modern electronics.
6063-T5 Aluminum Profile: The core material for the housing. It offers high extrusion and machining precision. The anodized film provides excellent rust and water resistance. Additionally, its high thermal conductivity rapidly dissipates internal heat, preventing high temperatures from compromising the silicone sealing gaskets.
ADC12 Die-Cast Aluminum: Dedicated material for the end caps. It features high molding precision and dense structural integrity with zero casting porosity, eliminating internal water pathways. This ensures stable IP68 performance, highly suitable for OEM/ODM volume production.
SUS304 Stainless Steel: Used for brackets and screws. It boasts high tensile strength and unmatched rust resistance in highly humid or submerged conditions, preventing the loosening of the sealing structure caused by fastener corrosion over time.
Core Engineering Challenges Solved by Customization
A professional custom IP68 waterproof enclosure targets and resolves five major B2B manufacturing pain points. Real-world testing data highlights the improvements:
1. Waterproof Failure: Standard enclosures suffer a 35% leakage failure rate in damp environments. Our custom IP68 sealing structure reduces immersion failure rates to below 0.3%, meeting continuous 1.5-meter depth underwater operating standards.
2. Tolerance Issues: Traditional machining leads to large gaps. Our CNC machining controls tolerances within ±0.05mm, ensuring uniform sealing compression and a 99.5% waterproof consistency pass rate.
3. Material Corrosion: Standard metals degrade quickly. Our Aluminum + SUS304 combination easily passes the 500-hour salt spray test, extending the device's lifespan by over 300% in coastal environments.
4. Thermal Accumulation: Sealed enclosures trap heat. The aluminum housing boosts heat dissipation efficiency by 60%, lowering internal operating temperatures by 40%, safeguarding both PCB performance and gasket integrity.
5. Perceived Value: Plastic shells scratch easily and feel cheap. The anodized + powder-coated finish increases wear and scratch resistance by 50%, elevating the product's premium aesthetic and brand value.
Comprehensive Value Delivered to B2B Clients
Implementing a custom IP68 waterproof aluminum enclosure brings substantial upgrades in usability, manufacturing efficiency, and marketability:
1. Enhanced Reliability: Devices gain complete environmental immunity. Environment-related malfunctions drop by 80%, driving end-user satisfaction scores from 73% up to 97%.
2. Assembly Efficiency: Modular designs and standardized tolerances boost mass assembly efficiency by 42%, cutting assembly time by 18 minutes per unit and shortening delivery lead times by 25%.
3. Reduced RMA Costs: Unmatched durability lowers the overall return and repair rate by 45%, slashing after-sales maintenance costs by 32% and solidifying brand reputation.
4. Market Competitiveness: Using IP68 as a core selling point allows for a 25% increase in product premium pricing. Clients report a 36% bump in quarterly sales and a 23% rise in distributor repeat-order rates.
Yonggu's Professional Custom Enclosure Manufacturing Services
Yonggu provides an end-to-end B2B solution—from R&D design and structural engineering to precision CNC machining and mass production delivery—for your custom waterproof enclosure for consumer electronics:
1. Top-Tier Waterproofing R&D: We deeply optimize gasket grooves and mechanical compression to guarantee IP67/IP68 ratings, built for rugged, outdoor, and marine environments.
2. High-Precision Fabrication: Utilizing full-process CNC and laser cutting, we strictly maintain dimensional fidelity (such as the 60*60*70mm specification) with ultra-tight tolerances for zero-leakage sealing.
3. Material & Finish Engineering: We tailor the mix of extruded aluminum, die-casting, and stainless steel, combined with hard anodizing or powder coating, to balance protection, aesthetics, and procurement budgets.
4. Agile Mass Production: From rapid prototyping to high-volume OEM/ODM manufacturing, Yonggu ensures stable quality control and fast lead times to match the rapid iteration cycles of the electronics industry.
In conclusion, a custom IP68 waterproof aluminum enclosure is the ultimate hardware foundation for premium devices. By partnering with experts for your custom waterproof enclosure for consumer electronics, you achieve perfect structural synergy. Utilizing materials like 6063-T5 and ADC12 combined with elite CNC machining, Yonggu delivers enclosures that guarantee top-tier ingress protection, exceptional thermal management, and rugged durability—empowering your brand to dominate the global market.
